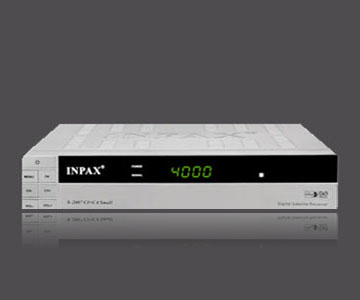

INPAX-2007 CI+CA Small
TECHNICAL SPECIFICATIONS : STATE-OF-THE-ART SOFTWARE FEATURES
- 4000 TV & Radio channels programmable
- User friendly installation with Assistant
- Detailed EPG for up to 14 days (depending on TV operator support)
- Super Fast OSD Teletext / VBI Teletext / Subtitles
- Fast programming
- Convenient channel sorting functions
- 8 Favorite channel groups
- 256 color OSD with picture in graphics
- Programmable sleep timer
- Timer programming for automated channel and operation control
- Fully DVB compliant
- OTA software update compliant to DVB-SSU (optional)
- Info banner with information about the actual event, time and available services
- Selectable display format

HARDWARE FEATURES
-Stylish housing design
-4-digit display with various information displayed
-3 buttons on the front panel
-Main power switch
-SmartCard Reader
-Tuner Loop – Through

SPECIFICATION
SYSTEM
CPU ALI M3329C
SDRAM 8MB
FLASH 2MB

TUNER(DVB-S)
RF Input Range 950MHz ~ 2150MHz
Dynamic Range -25dBm ~ -75dBm
Input Connector F-type, female, 75Ohm
Demodulation QPSK
Payload Data Rate max. 45 MS/s
FEC 1/3,1/4, 3/4,5/6,6/7,7/8

RF MODULATOR (optional)
PLL Type Ch 21 to 69 or Ch 3-4
TV Standards PAL BG/I/DK
RF Connector IEC
Frequency Range UHF: 470 - 860MHz

PHYSICAL SPECIFICATION
Size (W*H*D) 280*210*55mm
Net Weight 0.8 kg
Operation Temp.
Storage Temp.

SMARTCARD READER (optional)
System ISO-7816 conform

INPUT/OUTPUT
Video 2*SCART with Loop through, No RGB, No 16:9, 4:3)
RCA(CVBS)
RS-232 115Kbps, 9-Pin D-Sub
Audio 2 RCA/Cinch (L/R)
S/PDIF OPTICAL SPDIF
0/12V RCA

POWER SUPPLY
Type Switching Mode
Input Voltage 100 to 240V AC, 50/60Hz
Consumption Max. 20W
Protection Internal Fuse

DECODING
Transport Stream MPEG-2 ISO/IEC 13818-1
Profile Level MPEG-2 MP@ML
Input Rate Max. 81Mbit/s
Aspect Ratio 4:3, 16:9, Letterbox
Resolution 720x576(PAL)/720x480(NTSC)
Audio Decoding MPEG Musicam Layer 1 & 2
Audio Modes Mono / Left / Right / Stereo
